" A Versatile Solution For Every Situation "

Application Highlights

  • Ultra-functional : for extreme environmental conditions and rough handling
  • Ultra-versatile : Wide range of sensors, wide options of docking devices - Addon Pluggable Barcode (1D/2D) reader

FT-810 Specification

INTERFACES

  • 1 x USB 3/3.1 type C (Mutually used for HP/MIC & OTG)
  • 1 x Micro SD, 2 x SIM slot, Integrated Mic
  • 2 x Waterproof POGO pin connectors
  • 7 Dedicated Button includes Vol+,Vol-,back,Home and 2 x User-definable Function Key ( F1 & F2)

OPTIONAL ACCESSORIES

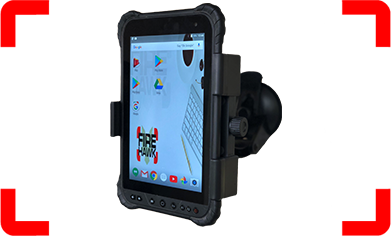

  • Vehicle Cradle - Gamber Johnson with locking feature
  • Hand Strap
  • USB Type C splitter - USB type C to 3.5 mm Jack & charging
  • Car charger - Cigarette type/Bare Wire
  • Snap on LAN Port / 2D Barcode Reader / USB Type A (Choose one)

ENVIRONMENT

  • IP65 Certified
  • Meets MIL-810G for shock, vibration, drop, dust & humidity
  • 5-ft drop resistant
  • Operating temp. -20 ° to +60°C

DISPLAY & TOUCH

  • 8” IPS with 1280x800, LED backlit
  • Sunlight-readable, Anti-Glare, Up to 600 NITS
  • Supports 10 points Multi-touch, on screen keyboard
  • supports glove touch / wet touch

OPERATING SYSTEM

  • Android 10 | 11.0^

CAMERAS

  • 13Mp Autofocus with dual-LED flash (rear)
  • 5Mp (front)

CPU

  • Qualcomm MSM8940 , Adreno 505 GPU
    Octa-Core CPU up to 1.4 Ghz (64-bit)/
  • Snapdragon - 632
    Octa-Core CPU up to 1.8 Ghz (64-bit)/
  • Qualcomm Snapdragon 480, Adreno 619 GPU
    Octa-Core CPU up to 2.0 Ghz

MEMORY/STORAGE

  • 3GB Optional 4GB LP DDR3 | 4GB/6GB/8GB RAM^
  • 32GB Optional 64GB eMMC | 64GB/128GB/256GB ROM^

INTEGRATED SENSORS

  • 3D Acceleration Sensor, E-Compass
  • Ambient Light Sensor, Gyro
  • Magnetic Sensor

DIMENSION & WEIGHT

  • 235×146×13 mm , 610 gm

CONNECTIVITY & NETWORK

  • WiFi 802.11 a/b/g/n/ac
  • Bluetooth 4.2 | 5.1^
  • Integrated 4G LTE / 5G Ready^ Global Mode with voice calling
  • Integrated Passive NFC

NAVIGATION

  • High Precision dedicated satellite GPS with external Antennae Connector.
  • optional Ublox ZED F9P with high accuracy#.
    support up to 184 channel, SBAS Support (WAAS/EGNOS/MSAS/GAGAN)
    update rate up tp 10 Hz, Real-time with
    SBAS correction < 1 m
    Protocol - NMEA 0183 (ASCII 0183), RAW (Binary)

BATTERY & POWER

  • Capacity: 8000 mAh, user Removable
  • up to 12 hours backup

WARRANTY

  • One year standard - optional 2nd and 3rd year
  • Also available with Screen Resolution 1920x1200#^.
    #Only available with Snapdragon 632 processor.
    ^Only available with Snapdragon 480 processor.
    • Download Brochures Docking Station

  • Firehawk is constantly enhancing product specifications and accessories. Specifications subject to change without notice. Trademarks are property of their respective owners. For more details refer to receptive OEM’s datasheet.
